Drop Pacts: agreements, lifecycle and outcomes

Read this before anything else: Pacts is reference-only today

The reference indexer publishes a machine-readable capability boundary. Its mode is reference. Five things are supported, and twelve authority fields are all false.

Pacts capability contract, schema version 1
Group	Fields	Value
`supported`	`verifiedDrops`, `recordedPactSeeds`, `pactsReferences`, `deterministicPrimitives`, `localProofPackValidation`	true
`authority`	`pactCell`, `liveCells`, `transaction`, `authorization`, `signature`, `signatures`, `broadcast`, `custody`, `contractExecution`, `enforceableOffChainPolicy`, `valueBearingPacts`, `valueBearingAuthority`	false
`recovery.status`	Guidance returned with every capability response	`reference_only`

In the indexer's own words: Pact Seeds and Pacts references are recorded evidence only. They are not live Pact Cells, transaction requests, authorization, signatures, custody records, enforceable off-chain policy, or value-bearing authority.

If a screen tells you a Pact transaction is pending

No funds or live Pact state are held by the reference service. Do not sign and do not send funds. Keep the full blueprint and the plan hash together, verify any Bitcoin transaction independently in a wallet or explorer you trust, and contact support with the plan hash. No Pacts interface ever needs a seed phrase or a private key.

Everything below the capability contract describes the record formats and the validation rules that are implemented and testable today. Where a structure belongs to the future execution model rather than to what the reference service will act on, this page says so in the section itself.

1. The Pact Seed

A Pact Seed is a Drop. It uses the ordinary Drops leaf, with marker drops-pact and content type application/vnd.drops.pact-seed. Its body is a fixed 184-byte binary record. Nothing about it is free-form, which is why two implementations cannot disagree about what an agreement's identity is.

A fixed-width record with no optional fields. Decoding is a length check followed by five slices.

1.1 Seed fields

What each Pact Seed field pins
Field	Size	Meaning
`network`	1 byte tag	The Bitcoin network this Pact belongs to. A Pact does not exist on another network.
`enforcementFloor`	1 byte tag	How much of the agreement Bitcoin enforces by itself. See enforcement floors.
`engineId`	16 bytes	Which rule engine interprets the ruleset. Identifies the interpreter, not the agreement.
`rulesetHash`	32 bytes	The agreement's rules. Change one clause and this hash changes.
`abiHash`	32 bytes	The shape of the actions the ruleset accepts.
`genesisStateRoot`	32 bytes	The agreement's opening state, before any transition.
`policyRoot`	32 bytes	The policy in force at genesis. Policy can move; the ruleset cannot.
`dataAvailabilityPolicyHash`	32 bytes	Where the parties agreed the off-chain material will be kept, and on what terms.

1.2 Pact identity

A Pact's identity is derived, not chosen. It is a tagged hash over the Seed's own Drop identity plus the three hashes that cannot change during the Pact's life.

pactId = taggedHash("Drops/Pact",
             networkTag                    (1 byte)
          || txid                          (32 bytes, internal byte order)
          || seedInputIndex                (4 bytes, big-endian)
          || rulesetHash                   (32 bytes)
          || abiHash                       (32 bytes)
          || policyRoot                    (32 bytes))

The Seed's Drop identity supplies the transaction id and input index. Because genesisStateRoot and dataAvailabilityPolicyHash are not in the preimage, a Pact keeps its identity across state changes, while a different ruleset, a different action shape, or a different genesis policy produces a different Pact.

2. Enforcement floors

This is the field that stops a Pact from pretending. It states the weakest guarantee a reader may assume, in one word.

The three enforcement floors
Floor	Tag	What Bitcoin guarantees	What still depends on people
`recorded`	0	That these exact terms were committed at this height, and nobody edited them afterwards.	Everything else. Performance, delivery, payment, and any consequence of breach.
`co-signed`	1	The above, plus that a spend needs the signatures the script requires.	Whether the signers were entitled to sign, and whether the off-chain obligation was met.
`template-enforced`	2	The above, plus the script constraints of a known template: timelocks, required keys, and which outputs a spend may create.	Anything the template does not encode. A template constrains spends; it does not read the agreement.

Read the floor as a ceiling on your trust

A recorded Pact is a notarised document, not an escrow. Bitcoin can enforce signatures, timelocks, and whether a particular output has already been spent. It cannot enforce that a shipment arrived. An interface that blurs those two things is the failure this field exists to prevent.

3. Pact lifecycle

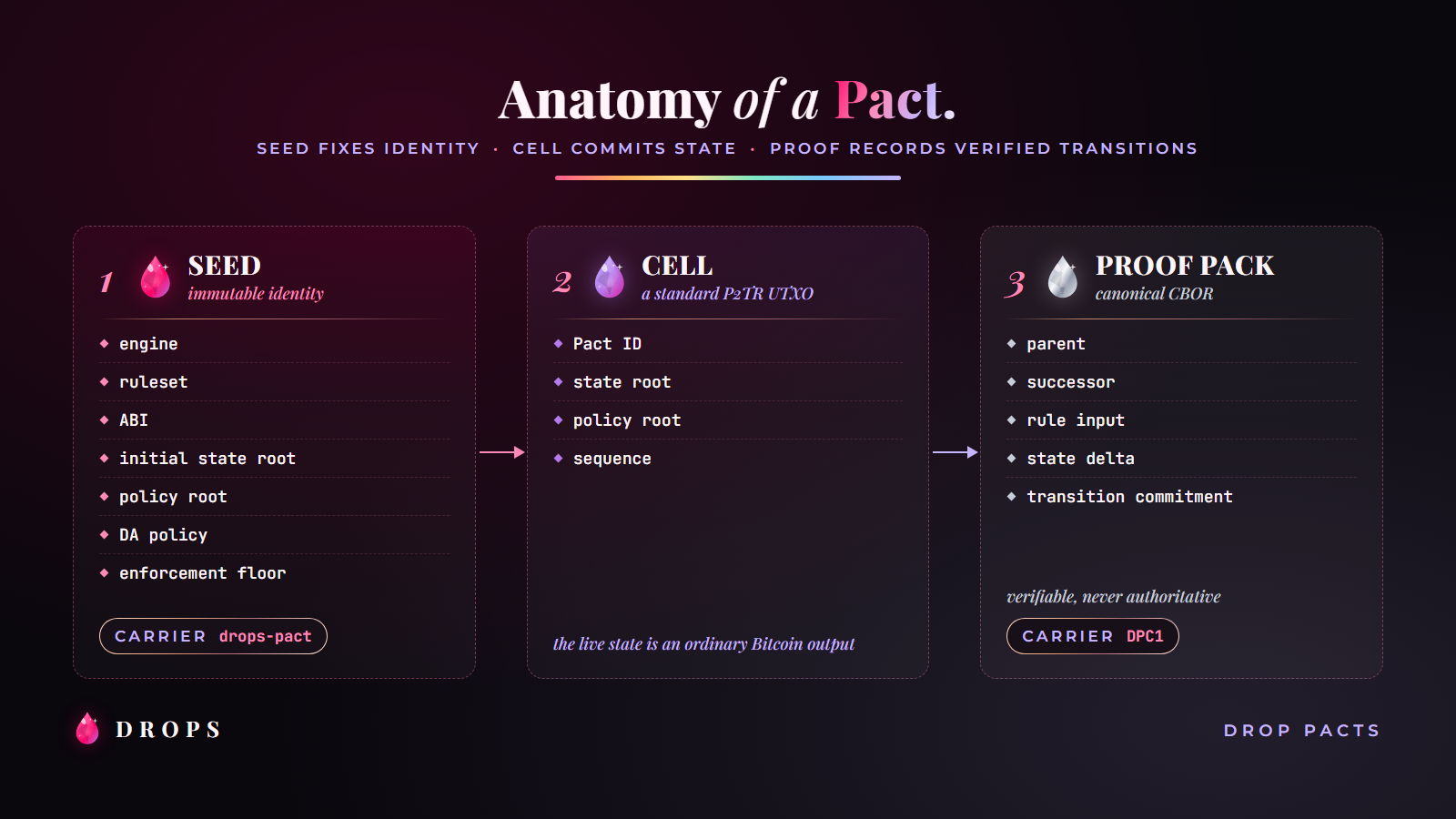

A Pact has three structural pieces. The Seed is recorded today. The Cell and the transition belong to the execution model, and the reference service validates them locally without acting on them.

Seed, Cell, transition. The reference deployment records the first and validates the other two without granting them authority.

3.1 The Cell descriptor

176-byte Cell descriptor, magic `DPCL`
Offset	Size	Field	Notes
0	4	magic `DPCL`	ASCII
4	1	reserved	Must be zero
5	1	`flags`	One byte
6	2	reserved	Both bytes must be zero
8	32	`pactId`	Ties the cell to its Pact
40	8	`sequence`	Unsigned 64-bit, big-endian
48	32	`stateRoot`	The state this cell asserts
80	32	`policyRoot`	The policy in force at this cell
112	32	`stateAttachmentHash`	Binds the off-chain state material
144	32	`transitionCommitment`	The transition that produced this cell

The Cell leaf that carries the descriptor is deliberately tiny: a push of the marker drops-cell, OP_DROP, a push of the 176-byte descriptor, OP_DROP, then OP_0. It is a commitment carrier, not a spending condition, and it is not a Drops leaf.

3.2 The transition preimage

A transition is committed by hashing a fixed 245-byte preimage. The commitment appears in two places, and both must agree.

transitionCommitment = taggedHash("Drops/PactTransition", preimage)

preimage (245 bytes, big-endian integers)
  0    1   networkTag
  1   32   pactId
  33  32   parent txid, internal byte order
  65   4   parent output index
  69   4   parent input index
  73   4   successor output index
  77   8   parent sequence
  85  32   parentStateRoot
  117 32   nextStateRoot
  149 32   nextPolicyRoot
  181 32   proofPackHash
  213 32   opDropEffectHash

If a transition has no OP_DROP token effect, opDropEffectHash is 32 zero bytes. Otherwise it is the SHA-256 of the effect payload. That single field is how a Pact and a token movement are tied together without either protocol reaching into the other.

4. Outcomes and how they are checked

An outcome is a claim that the Pact moved from one state to the next. Checking it means checking that the recorded successor is exactly the successor the stated terms produce. Nine conditions must all hold.

P-1
The parent descriptor, the successor descriptor and the transition must all carry the same pactId.
PACTS_INVALID_TRANSITION: Pact IDs do not match
P-2
parent.sequence must equal the transition's parentSequence, and successor.sequence must equal parent.sequence + 1. No gaps, no rewinds.
PACTS_INVALID_TRANSITION: cell sequence is invalid
P-3
parent.stateRoot must equal parentStateRoot, successor.stateRoot must equal nextStateRoot, and successor.policyRoot must equal nextPolicyRoot.
PACTS_INVALID_TRANSITION: cell roots do not match the transition
P-4
The ruleset result recorded in the proof pack must equal nextStateRoot. The outcome must be the outcome the rules produced.
PACTS_INVALID_TRANSITION: ruleset result does not match next state root
P-5
The OP_DROP effect hash must equal SHA256(effect) when an effect is present, and 32 zero bytes when it is not.
PACTS_INVALID_TRANSITION: op-drop effect hash does not match
P-6
proofPackHash must equal the hash of the proof pack payload actually supplied.
PACTS_INVALID_TRANSITION: proof pack payload hash does not match
P-7
successor.transitionCommitment must equal taggedHash("Drops/PactTransition", preimage).
PACTS_INVALID_TRANSITION: successor descriptor does not commit to the transition
P-8
The successor Cell leaf must prove its own Taproot commitment against the successor output script, using the same control-block rules as a Drop.
PACTS_INVALID_SUCCESSOR_CELL
P-9
The DPC1 anchor must decode to that same transition commitment. The anchor script is exactly 38 bytes: 6a 24 "DPC1" <32-byte commitment>.
PACTS_INVALID_DPC1: DPC1 commitment does not match the proof pack transition

The pact verifier on this site runs rules P-1, P-2, P-3, P-7 and P-9 in your browser from descriptor and preimage hex, and explains exactly which one failed.

4.1 The proof pack

The proof pack is a deterministic CBOR structure holding the transition, both descriptors, the successor control block and output script, and the ruleset material: rulesetInput, stateWitness, stateDelta, rulesetResult, an optional opDropEffect, and a list of availability hashes. Its encoding is deterministic on purpose, so that a proof pack has one serialization and therefore one hash.

5. The Pacts reference profile

Not every Pact needs the full execution model. The lightest useful record is a Pacts reference: a Drop that ties a template to the two hashes a party keeps locally, so they can prove later which plan and which blueprint they agreed to.

Pacts reference profile
Content type	`application/vnd.drops.pacts-reference+json`
Body	UTF-8 JSON, exactly four keys, serialized in sorted key order with no whitespace
Keys	`bh` blueprint hash, `p` always `pacts`, `ph` plan hash, `t` template id
Hash format	64 lowercase hex characters each
Template grammar	`^[a-z][a-z0-9-]{0,40}$`
Size	Always well under the 256-byte body limit

{"bh":"<64 hex>","p":"pacts","ph":"<64 hex>","t":"escrow-basic"}

A body that decodes to the right values but was serialized differently is rejected. Re-encoding the parsed reference must reproduce the body byte for byte, exactly as it must for the leaf itself. Unknown keys, missing keys, reordered keys, added whitespace and non-string values are all rejections.

The plan hash and the blueprint hash reveal nothing on their own. They let a party show that the document they kept is the document the Pact committed to.

A dark studio still life: a glass-fronted vault of coins on the left, an illuminated padlock in the centre, and a rising row of glass blocks on the right, connected by thin light lines. — Shared custody, escrow, vesting and asset policy are the shapes people reach for. What Bitcoin proves about each is the enforcement floor, not the label.

6. Agreement shapes

These are the agreement structures the Pact record format is designed to describe. They are descriptions of the model, not services offered by the reference deployment.

Shared custody: Controllers, recovery expectations, and each approved change to the agreement state. A co-signed or template-enforced floor is what makes the signing rules real rather than described.
Escrow: Release and refund paths recorded before value moves, so both parties can point at the same terms afterwards.
Vesting: A release schedule tied to block height. Timelocks are one of the few things Bitcoin enforces directly, which makes this shape a good fit for template-enforced.
Asset policy: An OP_DROP token policy pointed at a durable public agreement record. The opDropEffectHash field is the join.
Community treasury: Shared policy, current state, and the history of approved changes, all readable from chain data rather than from an application's database.

Check an outcome against its terms or decode a Pact Seed body.
